Fuji’s lightest and strongest aluminum frame material that has multiple butting profiles in the frame tubes and reduces material in low stress areas which creates a lighter frame without sacrificing frame stiffness and durability.
Plus size tires are larger than a standard tire but smaller than a fatbike tire typically measuring 2.8”-3.25” in size. Plus size tires provide increased traction and stability, boosting your confidence on the trail.

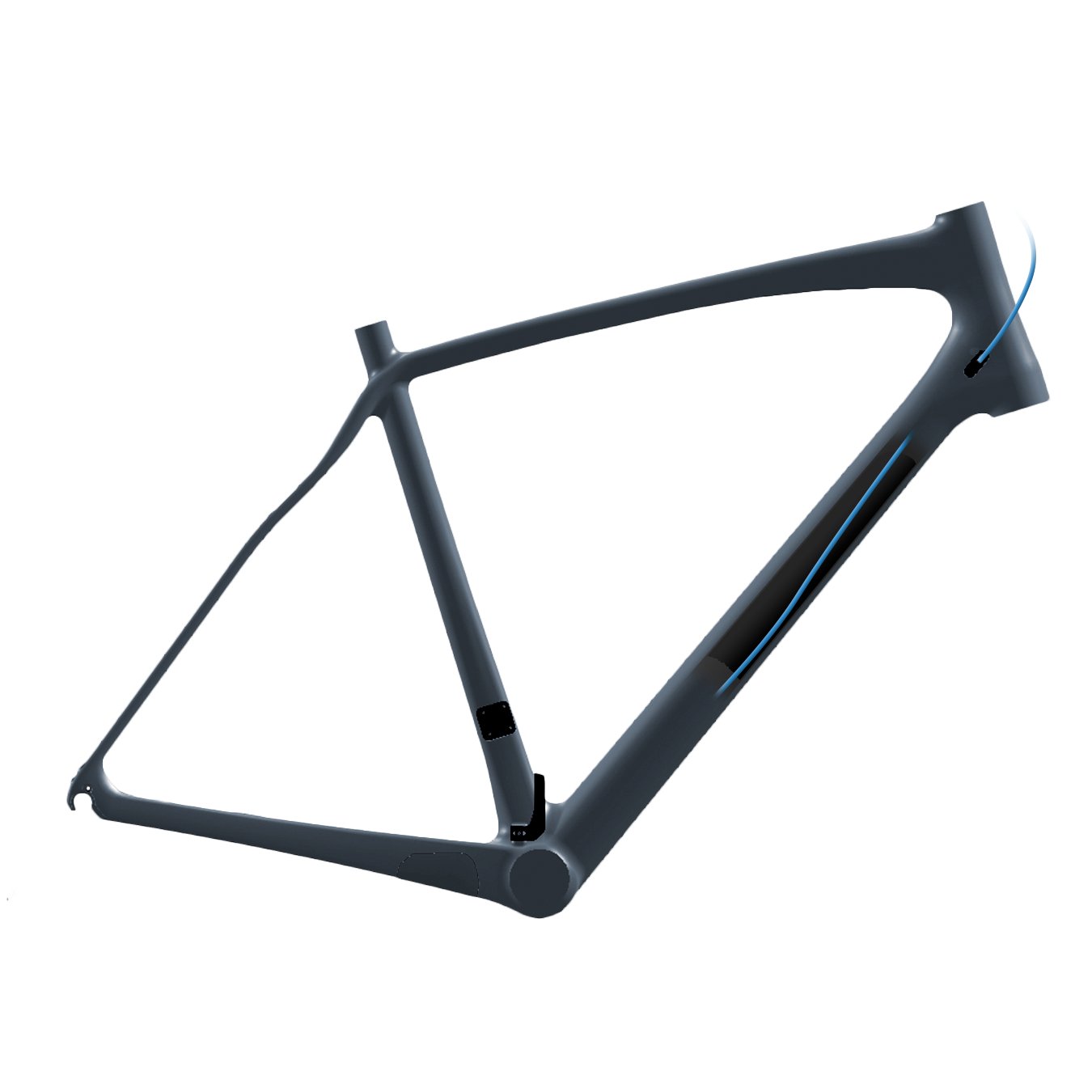

Cables are routed inside the frames tubes for improved aerodynamics, longer cable life and a clean aesthetic.

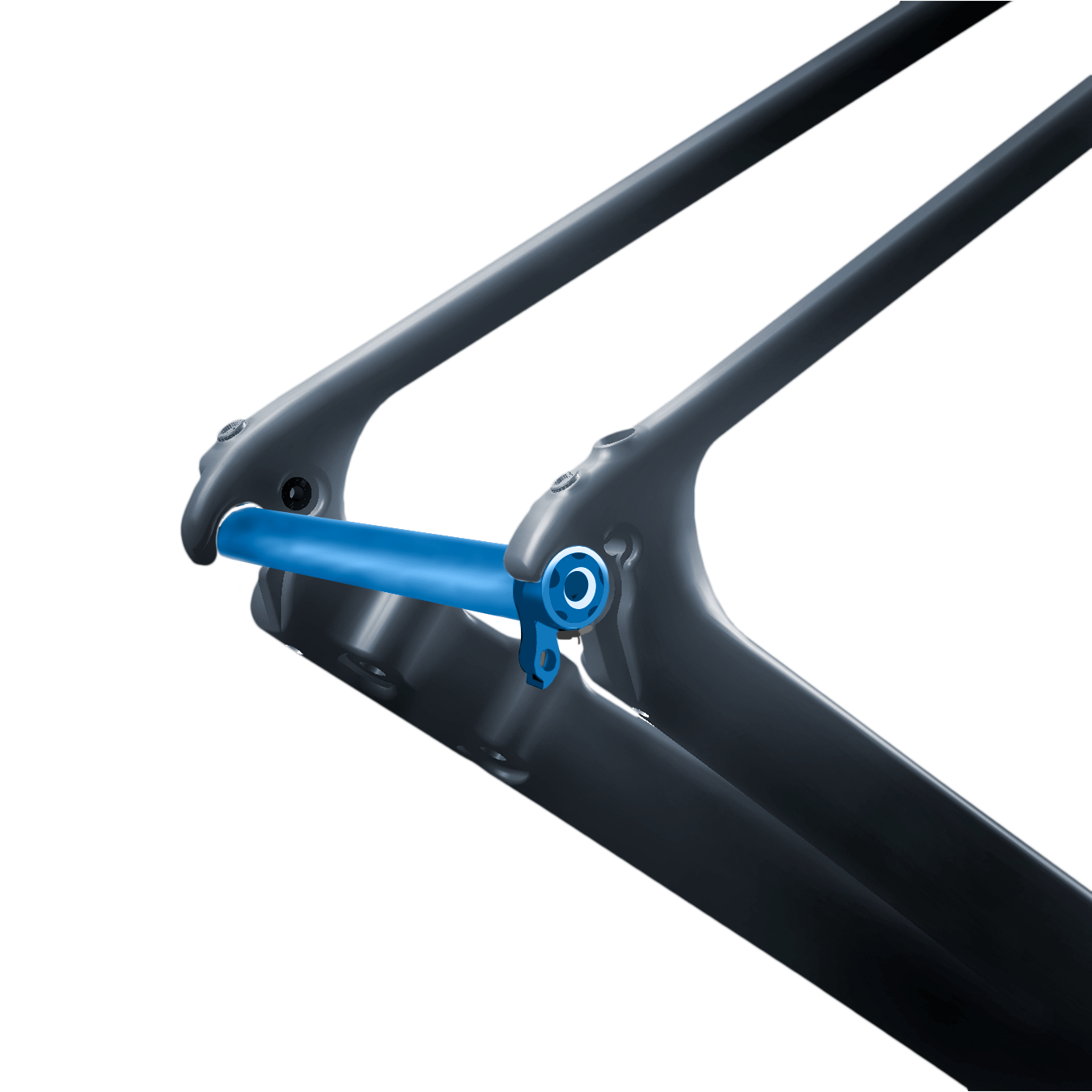

Thru-axles slide through a closed dropout increasing wheel security and the overall lateral stiffness of a frame creating a bike that has precise steering and optimal control.

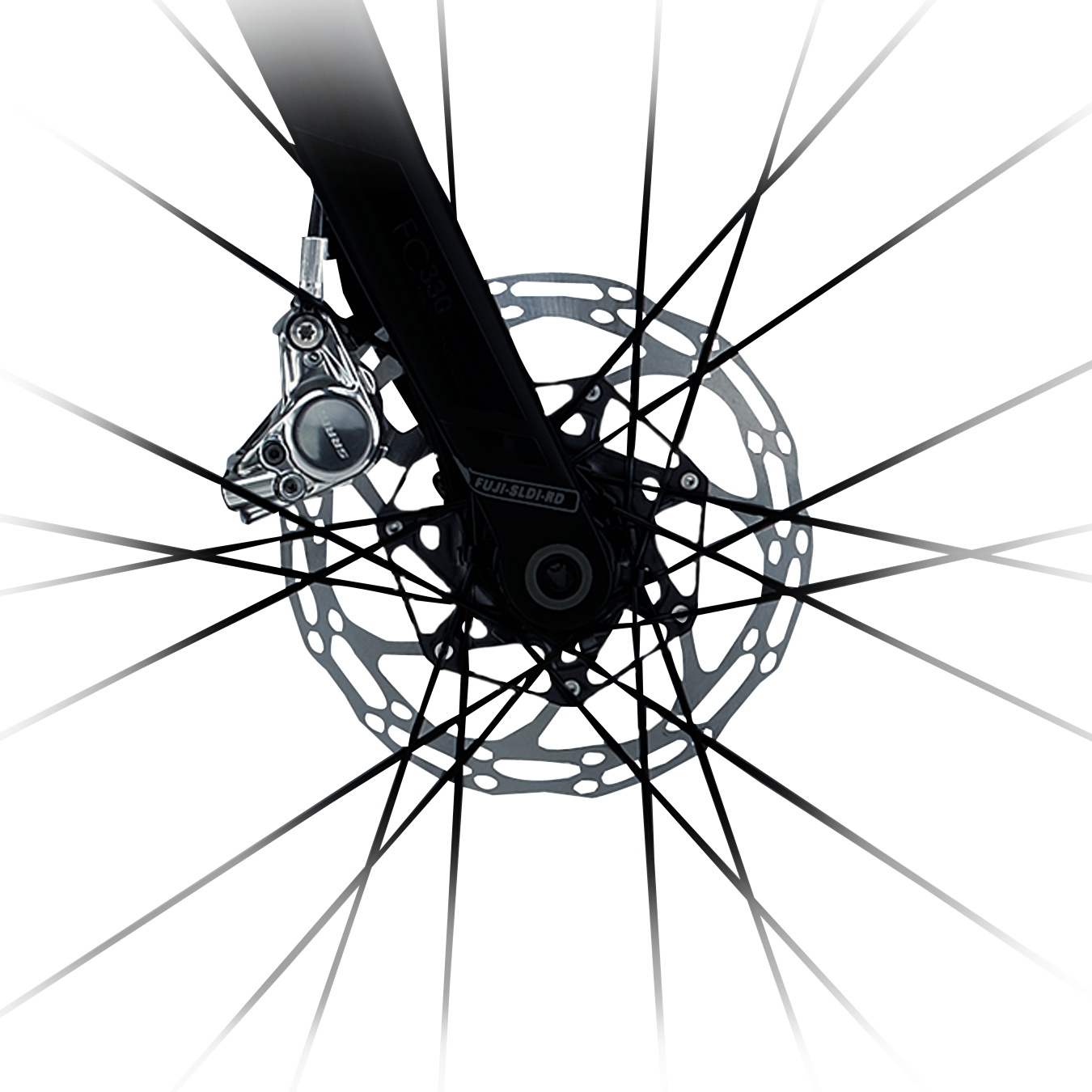

Disc brakes take less effort at the lever for better modulation and improved braking performance, particular for smaller hands.

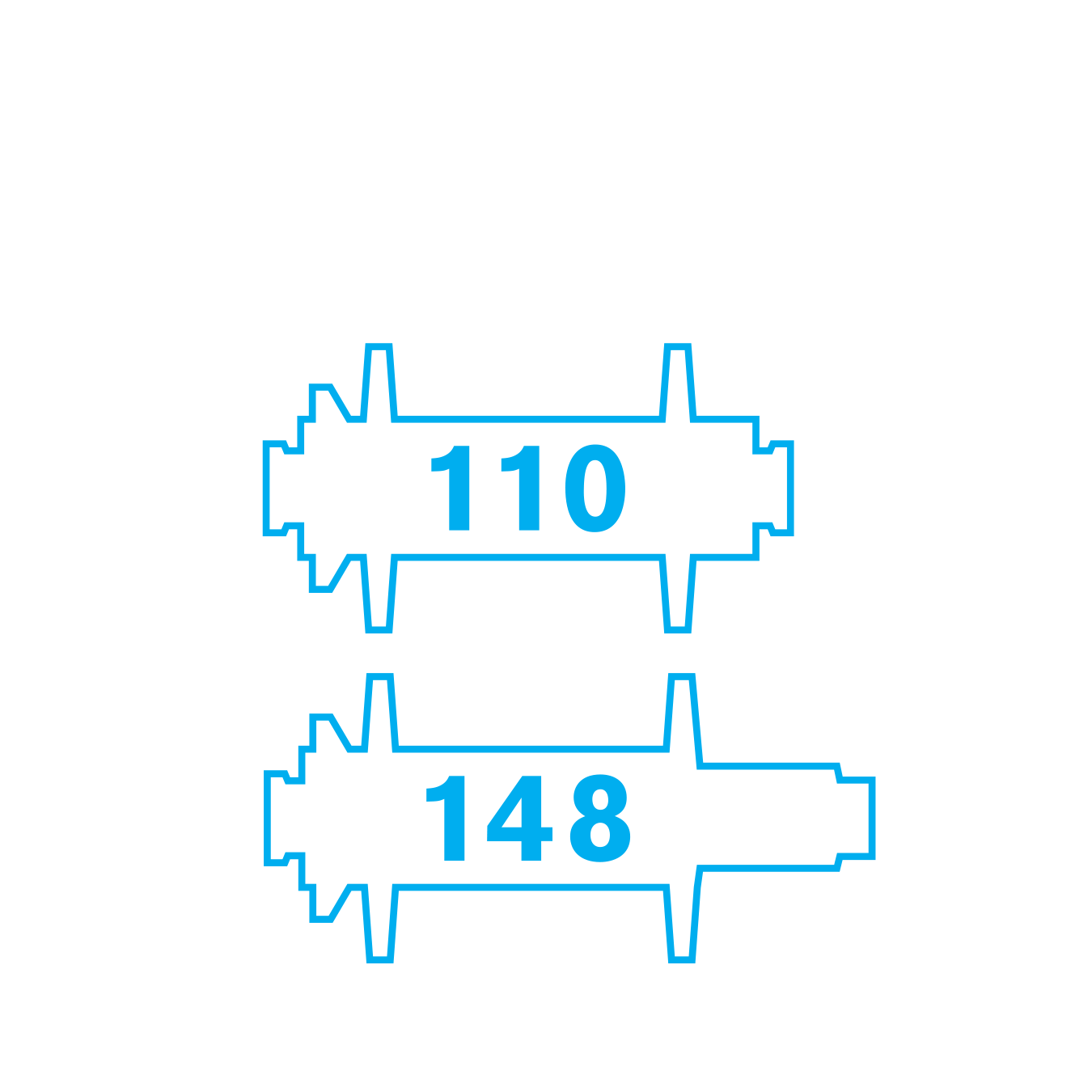

Boost hub spacing is a wider hub standard, 110m front and 148mm rear. These wider hub flanges help to create stiffer wheels as well as improve frame geometry by allowing shorter chainstays with clearance for larger volume tires.
S (15"), M (17"), L (19"), XL (21"), XXL (23")
Fuji A6-SL super-butted alloy front and rear triangle w/ PowerCurve down tube, smooth welds, tapered 1 1/8" - 1.5" head tube, post disc mount, Boost 148x12mm cold-forged dropout and replaceable hanger
Suntour XCR 34 LO Coil, tapered steerer, Boost 110x15mm thru axle, 120mm travel
FSA Gamma Pro, 30T
FSA Mega EXO
Shimano Deore shadow plus, 10-speed
Shimano Deore, Rapid Fire, 10-speed
KMC X10 w/ MissingLink, 10-speed
WTB Scraper i35 32H rims, Formula DC-511 110x15 Boost front, DC-1248 148x12mm Boost rear 6-bolt hubs
Schwalbe Nobby Nic Performance, 27.5" x 3.0", 67tpi, folding
Shimano M315, hydraulic disc, 180/160mm rotors
Shimano M315, hydraulic disc
FSA NO.42, 1 1/8" - 1.5", caged bearings
Oval Concepts 205 riser bar, 6061 alloy, Â± 5mm rise, 9° sweep, 31.8mm clamp
Oval Concepts 600AM, 3D-forged 6061 stem body, 0°
Oval Concepts 634, large diameter pads, single lock on, dual density
Oval Concepts 238 trail, steel rail
Oval Concepts, 6061 alloy, 30.9mm diameter
13.99 kg. / 30.81 lbs.

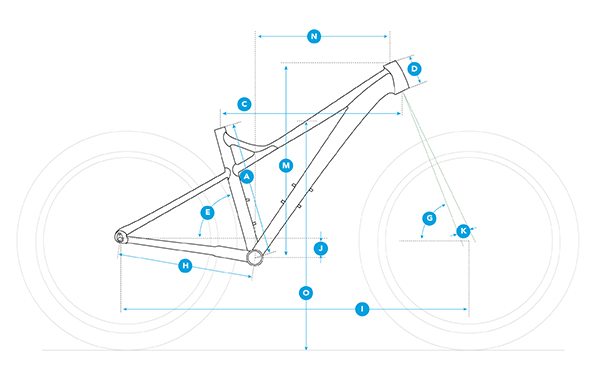

|Size||(S) 15"||(M) 17"||(L) 19"||(XL) 21"||(XXL) 23"|
|A||Seat Tube, Center To Top||381||432||465||513||543|
|C||Top Tube, Effective||585||610||635||660||680|
|D||Head Tube Length||90||100||100||110||120|
|E||Seat Tube Angle||74°||74°||74°||74°||74°|
|G||Head Tube Angle||67.5°||67.5°||67.5°||67.5°||67.5°|
|J||Bottom Bracket Drop||55||55||55||55||55|
|Seat Post Diameter||30.9||30.9||30.9||30.9||30.9|
*Fuji’s Size Guide shows suggested sizes. For the most accurate sizing please visit your local authorized Fuji retailer for a bike fit and a test ride.
